4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance

Name: 4540rpm DRO Vertical Turret Milling Machine 0005mm Tolerance
Brand: RATEE
Price: 1 USD

Quality 4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance wholesale

Brand Name : RATEE

Model Number : 4E

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : TT/LC

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

Table size : 1270*254*90

X/Y/Z axis travel : 900/410/325

Max distance from spindle nose to table : 400

Spindle rotation speed : 66-4540rpm(50HZ)

OEM Service : Provide

DRO : Optional

Dimension : 1500*1700*2150

Milling head : R8/3HP

Contact Now

Product Characteristics:

1. High cost performance with Taiwan parts assembled in China with strict inner standard

2. Taiwan parts assembled in China

3. Spindle tolerance: 0.005mm

Parameters Sheet:

Model			4E
Table size		mm	127025490
Travel (Longitude X)		mm	900
Travel (Crossward Y)		mm	410
Travel (Vertical Z)		mm	325
Travel of spindle quill		mm	127
Max distance from spindle nose and table		mm	400
Spindle Rotation speed	Step speed milling head	50HZ	66-4540
		60HZ	80-5440
	Variable speed milling head	50HZ	40-3125
		60HZ	503750
	Inverter speed milling head	50HZ	0-4200
		60HZ	0-4200
Spindle taper			R8(NT30)
Spindle rated motor			3HP
Tilt angle (Forward and backward)			±45°
Tilt angle (Left and right)			±90°
Dimension		mm	150017002150
Net weight		kg	1400

Standard Accessories:

1. Working light

2. Way cover

3. R8/3HP spindle step speed milling head

4. R8 inch draw bar

5. Technical document

6. Accompanied toolbox

Optional accessories:

1. R8 (7 pcs) milling chuck

2. M12 clamping kits

3. 6' vise

4. Power feed

5. 2 axis/3 axis DRO

Overview:

4540rpm DRO Vertical Turret Milling Machine 0.005mm Tolerance

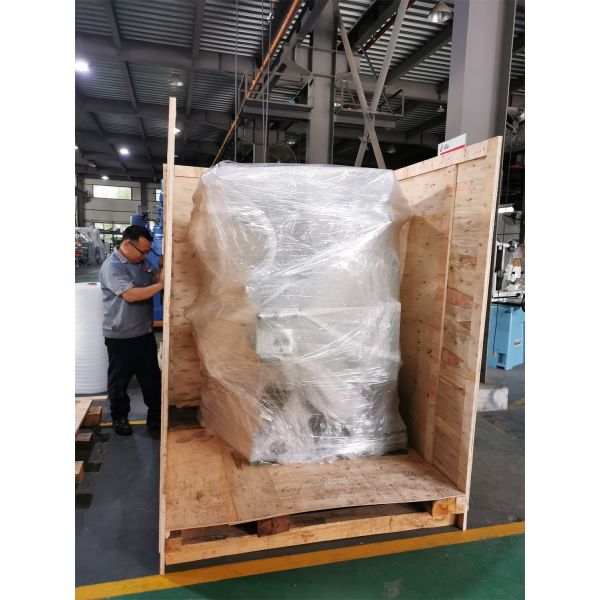

Package:

Product Tags:

DRO Vertical Turret Milling Machine

4540rpm Turret Milling Machine

0.005mm Tolerance Horizontal Milling Machine
